Free Falling Dart Impact Test / Drop Dart Impact Test For Plastic Flim

Introduction:

The machine is suitable for plastic film or sheet do the Free Falling Dart Impact Test under certain height,measure 50% plastic film or sheet sample breakage when the impact of the mass and energy.

Working Principle:

The dart freely falls and impact test sample; measure the weight needed to damage 50% of the number of samples to evaluate impact resistance.

Send email to us

Product Detail

Product Tags

Features

● LCD display test data.

● Easy operation, auto process data.

● Pneumatic clips.

● Auto clip and release dart.

● Built-in printer, can print report.

● Two test modes: Mode A and Mode B.

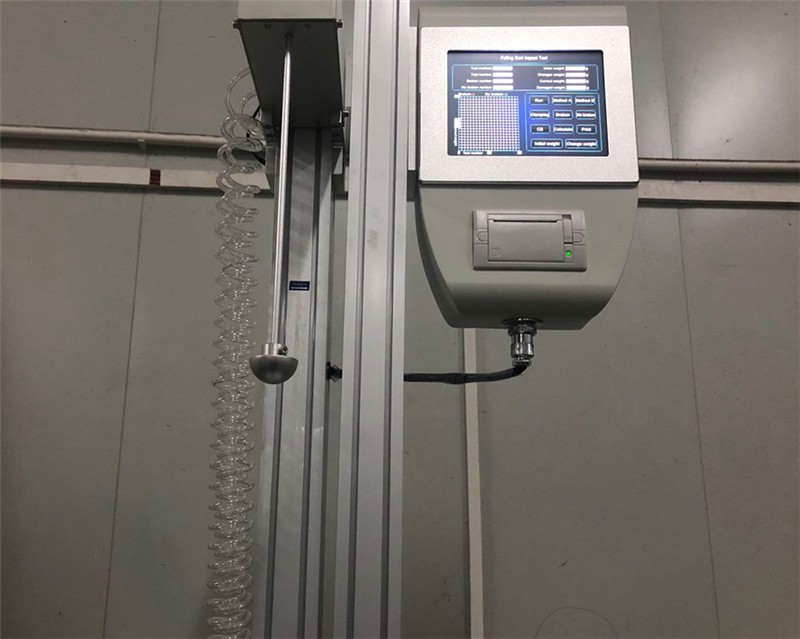

Free Falling Dart Impact Test Drop Dart Impact Test For Plastic Flim-01 (6)

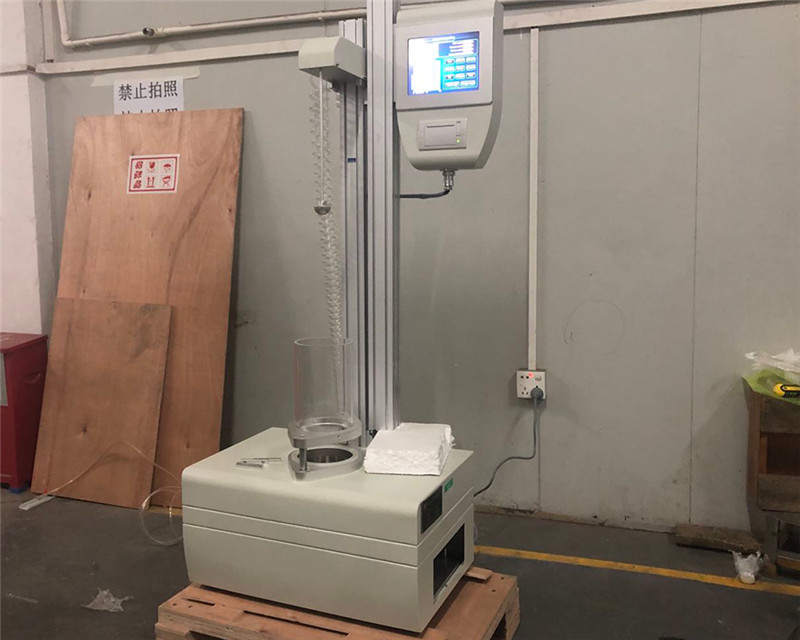

Free Falling Dart Impact Test Drop Dart Impact Test For Plastic Flim-01 (7)

Configuration

● Falling Dart Impact Tester, clips, weights, power cable

● User provide: compressed air

Specification

Test mode	Mode A, Mode B, optional
Test range	Mode A 50~2000g; Mode B 300~2000g
Test precision	1g
Dart weight	Mode A 30g; Mode B 260g
Dart size	Mode A Φ38mm; Mode B Φ50mm
Weights	5g, 15g, 30g, 45g, 80g, 90g, 8pcs for each
Size of weights	Mode A Φ30mm; Mode B Φ45mm
Impact height	Mode A 66cm; Mode B 150cm
Size of clips	outer Φ150mm, inner Φ125mm
Sample size	180×180mm
Gas source	compressed air, 0.6~0.8Mpa
Gas port	Φ8mm gas pipe
Instrument size	62×40×121/204cm
