UP-6000 Automatic Compression Testing Machine, RCT ECT Paper Crush Tester, Ring Compression Edge Crush Tester for Paper Tube

Automatic Compression Testing Machine, RCT ECT Paper Crush Tester, Ring Compression Edge Crush Tester for Paper Tube

Product Description:

This machine is used for testing the ring crush strength of the paperboard. With the proper accessories (optional), it’s also available to test the column compress , ring crush, concora crush and adhesion strength of the corrugated board.

Test Standard:TAPPI-T472 JIS-P8126 etc.

Send email to us

Product Detail

Product Tags

Specification

Capacity	2000N
Accuracy	0.01kg
Platen dimension	100×100mm(or customize by user needs)
Test stroke	90mm (or customize by user needs)
Test speed	12.7mm/min
Return function	self-return after test finishing
Weight	60kg
Power	1φ,220V/50Hz

Accessories

● Side pressure strength test= Ring Crush Tester+ Parallel cutting knife + Side pressure counselling piece;

● Ring crush strength test= Ring Crush Tester+ Ring crush sampler +Ring crush fixture;

● Bonding strength test = Ring Crush Tester + Hood strength stripping frame;

● Flat crush strength test = Ring Crush Tester+ Flat crush sampler.

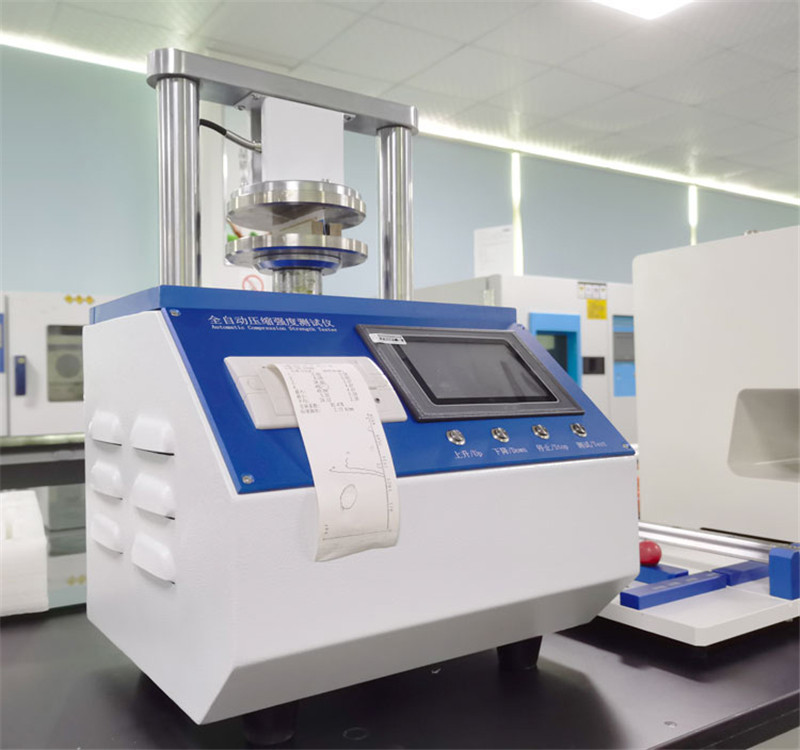

UP-6000 Automatic Compression Testing Machine, RCT ECT Paper Crush Tester, Ring Compression Edge Crush Tester for Paper Tube-01 ( ( (1)

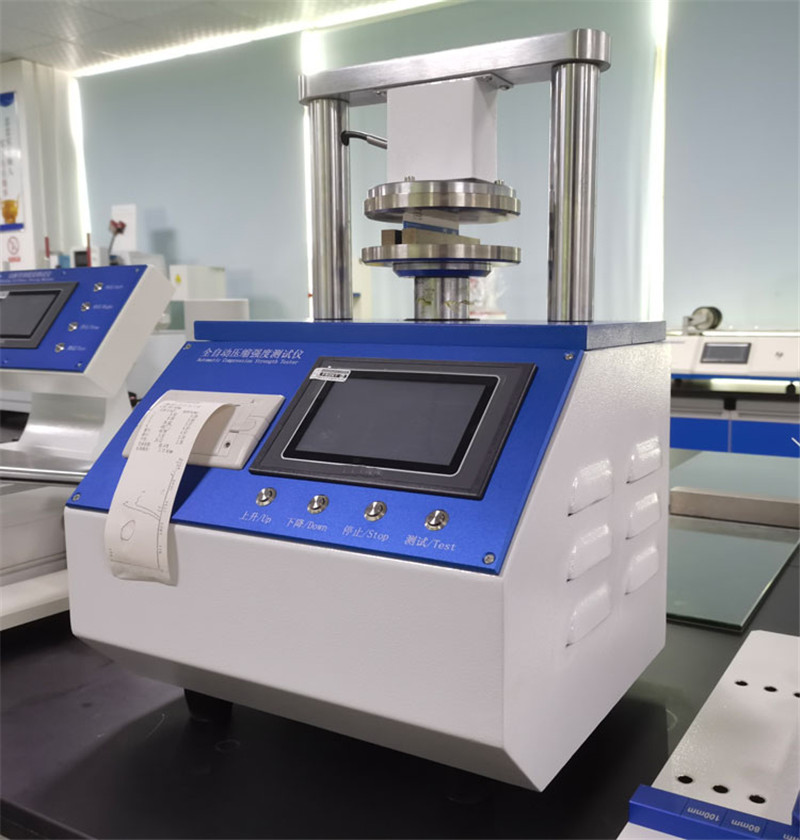

UP-6000 Automatic Compression Testing Machine, RCT ECT Paper Crush Tester, Ring Compression Edge Crush Tester for Paper Tube-01 ( (2)
